As Mo says, I\'m collecting iceworlds in an attempt to gather evidence about what their cause might be: good progress is being made.

What I need is the \'playback\' file at the moment the iceworld freezes. This may seem like a hard thing to do, but it\'s not really. Playback files are generated when graphics recording is turned on (by pressing Control-Q when the graphics are running). The files accumulate in the \'tmp\' folder for the model - e.g. \'T:\\Data\\BOINC\\projects\\climateprediction.net\\hadsm3mh_ktk0_006316540\\tmp\' for a Windows model I\'m recording at the moment - but your model will be in a slightly different place. The files have the extension \'.cpdn\' (e.g. \'hadsm3mh_ktk0_006316540.0021574.cpdn\') and are about 120 kB, so the amount of disk space used rises rapidly. When the iceworld freezes, the size of the file drops to about 8 kB (and 3 kB eventually). The file I need is the last full-size \'.cpdn\' playback file before the drop.

To do this you would need to make a backup of your current working installation, then restore a backup from before the freeze. Turn network activity off and re-run the iceworld until it freezes. Send me the single \'.cpdn\' file and then delete the iceworld installation and restore the working installation. Then carry on as normal.

If you would rather just get on with some more processing, then just ignore this post! I quite understand.

Thanks,

Iain

PS By the way, the graphics do not need to be left running when the recording has started. However, make sure you\'ve got enough disk space: one phase is 10802 * 24 * 120 kB = ~30 GB, though you shouldn\'t have to run it that long.

Thanks for unhiding your computer. Is this the iceworld model?

What a lot of models you\'ve processed for CPDN.

As Mo says, I\'m collecting iceworlds in an attempt to gather evidence about what their cause might be: good progress is being made.

What I need is the \'playback\' file at the moment the iceworld freezes. This may seem like a hard thing to do, but it\'s not really. Playback files are generated when graphics recording is turned on (by pressing Control-Q when the graphics are running). The files accumulate in the \'tmp\' folder for the model - e.g. \'T:\\Data\\BOINC\\projects\\climateprediction.net\\hadsm3mh_ktk0_006316540\\tmp\' for a Windows model I\'m recording at the moment - but your model will be in a slightly different place. The files have the extension \'.cpdn\' (e.g. \'hadsm3mh_ktk0_006316540.0021574.cpdn\') and are about 120 kB, so the amount of disk space used rises rapidly. When the iceworld freezes, the size of the file drops to about 8 kB (and 3 kB eventually). The file I need is the last full-size \'.cpdn\' playback file before the drop.

To do this you would need to make a backup of your current working installation, then restore a backup from before the freeze. Turn network activity off and re-run the iceworld until it freezes. Send me the single \'.cpdn\' file and then delete the iceworld installation and restore the working installation. Then carry on as normal.

If you would rather just get on with some more processing, then just ignore this post! I quite understand.

Thanks,

Iain

PS By the way, the graphics do not need to be left running when the recording has started. However, make sure you\'ve got enough disk space: one phase is 10802 * 24 * 120 kB = ~30 GB, though you shouldn\'t have to run it that long.

Thanks for unhiding your computer. Is this the iceworld model?

What a lot of models you\'ve processed for CPDN.

Dibb,

There are various ways to install BOINC and the files can end up in different places depending on the choices made during installation. Your machine is running Windows XP, so the \'tmp\' folder in which the playback files are stored will be something like:

C:\\Documents and Settings\\All Users\\Application Data\\BOINC\\projects\\climateprediction.net\\hadsm3fub_kgbp_005985944_7\\tmp

If graphics recording was turned on before the iceworld froze, then the \'tmp\' folder should now be filled with thousands of files all ending \'.cpdn\'. The earlier files will be about 120 kB and the later files about 8 kB.

The file I need is the last full-size one (i.e. 100-120 kB) before the file size drops.

Once the file has been identified, I can send a private message on this board with an e-mail address to which the file can be sent.

Thanks for re-running the iceworld. That\'s very good of you.

Iain

[Edit: the BOINC FAQ lists a number of places where BOINC may have installed its data files: The Big BOINC 6 Answer Thread.]

Dibb,

There are various ways to install BOINC and the files can end up in different places depending on the choices made during installation. Your machine is running Windows XP, so the \'tmp\' folder in which the playback files are stored will be something like:

C:\\Documents and Settings\\All Users\\Application Data\\BOINC\\projects\\climateprediction.net\\hadsm3fub_kgbp_005985944_7\\tmp

If graphics recording was turned on before the iceworld froze, then the \'tmp\' folder should now be filled with thousands of files all ending \'.cpdn\'. The earlier files will be about 120 kB and the later files about 8 kB.

The file I need is the last full-size one (i.e. 100-120 kB) before the file size drops.

Once the file has been identified, I can send a private message on this board with an e-mail address to which the file can be sent.

Thanks for re-running the iceworld. That\'s very good of you.

Iain

[Edit: the BOINC FAQ lists a number of places where BOINC may have installed its data files: The Big BOINC 6 Answer Thread.]

I have the file identified now. Where do I send it

Dibb,

That was a text-book iceworld: thank you for taking the trouble to find it and send it over.

The slab model went out of bounds in temperature and pressure on the west coast of North America. Here is an image of the models analysed so far: your model is the second of the north-western pair. All ice worlds so far have crashed in the ocean adjacent to land. Two other models show the same behaviour in the Mediterranean. Given all the possible coastal locations for a crash, presumably the limited latitude range is significant - however, that\'s a matter for the project physicists.



Green tinted rectangles/blobs are model land, blue tinted are model ocean.

Iain

These graphics are amazing.

I think we should get these very interesting posts about iceworlds and Iain\'s graphics into a thread of their own because the iceworld phenomenon is not connected to the \'client detached\' redesignation.

If Dibb and Iain don\'t object I\'ll split this thread after about 12 hours. A relevant title would make the iceworld posts more easily searchable.

Dibb has kindly sent me another slab iceworld, and the previous graphic has been updated accordingly.

This brings the total number of iceworlds processed in this way to 19: 9 slabs and 10 mid-holocene, all Windows, split 18 Intel and 1 AMD. I would be particularly interested in a Darwin or Linux/AMD fast-processing iceworld if anyone\'s got one (i.e. prepared to re-run a backup of one, or spotted an iceworld ahead in the work unit and prepared to switch on the graphics recording and send over the playback file at the crash point).

(So far as I can tell Linux/Intel does not have iceworlds.)

Thanks.

Hi Iain, I have another iceworld today H S E. Just copying yesterday\'s backup to re-run it. I\'ll send you the requested files when it crashes.

____________

Hi Iain, I have another iceworld today H S E. Just copying yesterday\'s backup to re-run it. I\'ll send you the requested files when it crashes.

Iain, the backup server running your task failed overnight (a dodgy second HDD). The task has continued OK after disconnecting the offending HDD. It\'ll be a couple of days to get to the crash point.

The WU has 8 companion tasks. It looks like task 9363338 H S E has crashed at/around the same point in phase 4. Task 9363340 is on Intel/Linux but not progressed as far yet. The rest are Intel with a mixture of MS variants.
____________

Iain, the files are on their way to you.

Edit: typo.
____________

Hi Ian:

I have an early, slow processing ice world for you. WU hadsm3fub_jwtx_006408687_1 froze at 14.96% at 26/8/1817 at 10:30. All clouds have disappeared and the temp graphic is uniformly blue. I am running Windows 7RC on an Intel core2duo 1.5 GHz processor with 2 GB’s of RAM. The machine was otherwise idle at the time.

I restored from a backup, and ran it to freeze up again with “record“ running. The file contains the last 13 days of graphics.
I have isolated what I think is the right file in the temp folder (there are 655 of them). Now that I have the file how do I send it to you?
____________

Thanks Jim.

I\'ve sent a private message with a suitable e-mail address. The PM should appear by following the \'Inbox\' link at the top-right of the thread pages.

I\'ll process the file and plot the result on a map, or increment the count if the model has crashed in the same place as a previous model.

PS hagar\'s file seems to have arrived ok - thanks.

Thanks to JIM and hagar for a slab and a mid-holocene iceworld. These have now been processed through the plotting software: one froze in phase 1 and one in phase 4 - but both froze at the same location off the west coast of North America. The image earlier in this thread has been updated accordingly, with points #14 and #15 at the south-eastern extreme attributable to these latest models.

PS The single AMD/Windows model I\'ve received so far - thanks mo.v! - froze in the Mediterranean, so adding to that category might be productive if anyone has such a thing (an AMD/Windows iceworld speeds up when it freezes, so it\'s easily missed).

Keep \'em coming.

Thanks, Mo. Now I\'m back from holiday, I should really write a coherent set of instructions so that no-one runs into any trouble when restoring a backup. (However, my first priority this weekend is to fill in all the holes dug by foxes while we were away - they dug into and emptied the compost bin among other incursions. Grrr.)

I\'m running out my accumulated mid-holocene models and it\'ll be slabs from then on ...

Hi Iain, assume you are still collecting iceworlds?

Got first one for ages. Spotted it (phase 2, at 62.96%) when doing usual morning check
which is essential now that I\'m running 9 slabs (+ one good ol\' CM3). This one here.
It turned blue early this morning soon after phase 2 timestep 226,842 which is 62.5% progress.

Have restored from backup taken at 8am yesterday but have suspended the quad\'s
other 3 models to help the iceworld get to the point as quickly as possible. Currently at 56%.

Will send you the .cpdn file probably tomorrow (Monday). Just need your email address.

Hi Iain, assume you are still collecting iceworlds?

Just need your email address.

... though it looks like you put your foot on the gas at trickle #3!

P.S. Like the chart but can you explain the Y axis \"spot (relative)\" please?

P.S. Like the chart but can you explain the Y axis \"spot (relative)\" please?

Thanks for the explanation.

So the restored model now goes past the point when it turned blue!
Had even aborted it yesterday, but it has trickled up at the next
timestep. Will just keep an eye on it and take more frequent backups
in case it hits another wall further on.

Sorry not to supply another iceworld for your collection!

Sorry not to supply another iceworld for your collection!

Sorry not to supply another iceworld for your collection!

Good news for you ...

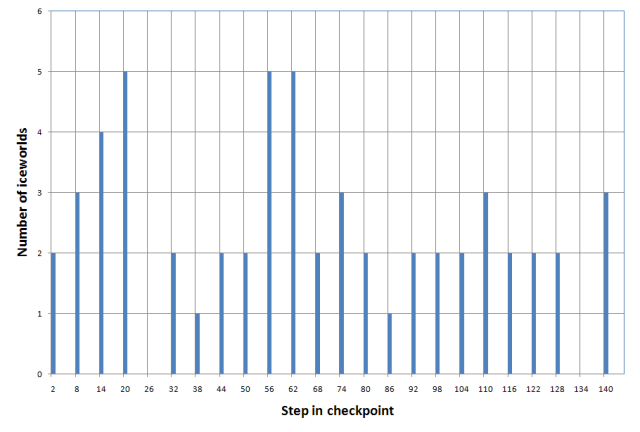

Collecting statistics about iceworlds, I\'ve seen quite a few occasions where something that looks like an iceworld isn\'t confirmed by other computers. So, they are sometimes caused by something on the PC and a restored backup will carry on. Never happened to me though. :-(

A slam-dunk Windows/Intel iceworld looks like this on one of my charts:

... and, before you ask, this WU was repeated a number of times - so there are more than the usual number of repeats!

Here\'s a Windows/AMD iceworld:

... it recovers! As far as I can tell, any iceworld on any platform that starts in phase 2 or later will recover at the next phase. Phase 1 iceworlds are doomed. On Windows/Intel, where the model slows down, you would have to have the patience of a saint to persist. I don\'t.

Does this mean that in the (unlikely) event that I should have a fast processing iceworld on my AMD machine I should just keep running it instead of aborting?

So my restored iceworld (task 9964633) from last week eventually completed and duly sent up the final trickle -
http://climateapps2.oucs.ox.ac.uk/cpdnboinc/result.php?resultid=9964633

As expected, since I had already aborted it before attempting the restore, we get the
\"Completed result (model name) refused: result already reported as error\" (in BOINC manager).

Assume that this can be ignored so the full set of results will be available to the scientists.

As you say Iain, this may have been a machine \"blip\". In the past I have tried a few restores but no luck.
Thereafter have always aborted and just take another one - i.e. the usual advice. Now I will always restore
an iceworld (don\'t like abandoning any model!) unless I\'ve been lazy and not backed up for several days.

Looking at my records (from our team stats), have 16 fails from 146 slabs (10%) and 8 from 28 mids (30%).
Presumably the majority, if not all, were iceworlds. Could do better!

[iansm wrote:] As expected, since I had already aborted it before attempting the restore, we get the
\"Completed result (model name) refused: result already reported as error\" (in BOINC manager).

Assume that this can be ignored so the full set of results will be available to the scientists.

[iansm wrote:] Looking at my records (from our team stats), have 16 fails from 146 slabs (10%) and 8 from 28 mids (30%).
Presumably the majority, if not all, were iceworlds. Could do better!

Iain,
Aha, confession time. Found out. It\'s a fair cop.
Checked own records again and found another 8 SM3/SM3MH models that also
failed during a period when that Q6600 was breaking the speed limit.
s/TS rates of around 1.00 or less for those 11 models have now reminded me!
That\'s 7 MH\'s + 4 slabs. Another 4 MH\'s in the iceworld detector slideshow
(on the same 880110 m/c) are km3a, km9s, km39, kk9v. The other one kj30
is from another (stock!) Q6600 (990567) so that has definitely got to be a proper iceball.

Am a good driver now, having throttled back to a sensible SM3 speed this year (1.05 - 1.10).
Last week\'s iceworld was just a small \"blip\" (grin).

Your great iceworld detector reveals all.

Unfortunately, not possible to restore those old models as I only keep
short term backups. Pity, I\'d be happy to dedicate one machine to retry a few.
It would be good practice now to keep iceworlds in a \"BOINCDataIce\" folder to
retry when convenient - and send them to the appeal if get iced up a second time.

Ha! I\'ve deleted most of my backups as well.

My backup procedure is now to download models when there\'s about 10 days to go on the currently running set (i.e. the maximum), then immediately suspend the newly downloaded models. The current set is then run to completion, leaving four (or whatever) suspended downloads. When the completed models have reported, BOINC is then stopped and a single backup taken. The advantage of this timing is that:

a) other people with faster machines get up to ten days ahead of me, so I can see the iceworlds coming (and turn on recording only when necessary)

b) the downloaded models are still only Zip files, so the backup is small and quick and can be moved to another machine without \'contamination\' by the download machine. (I do quite a bit of that to check iceworld repeatability.)

A reasonable \'raw\' backup history can now be kept without taking up too much space. If I\'m feeling nervous I take interim backups after phase changes (to prevent the re-uploading of Zip files), but throw them away when the new set starts and the Web site shows the right graphs for the old models.

The method works best for someone like me who doesn\'t expect many crashes, but it does make the whole backup business a bit less of a chore.

The collection of iceworlds now amounts to 26, with recent additions by mo.v and Dibb Fosdyke (and two of mine) - for which, many thanks! The current batch of Windows/Intel iceworlds seem all to start in the same place, on the west coast of North America.

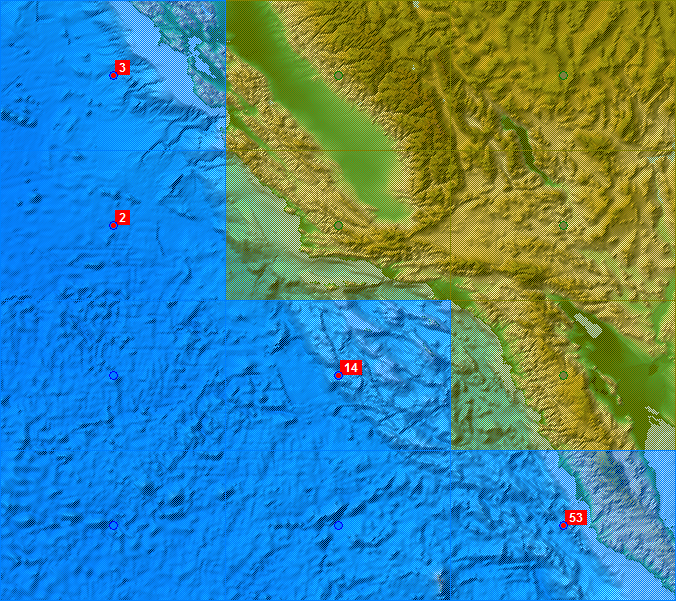

Here is the map again, together with the Mediterranean crashes.


West Coast


Western Med. - Straits of Gibraltar


Eastern Med. - Cyprus

Green and blue blobs are model grid points; the red blob is where the freeze started; a green tint indicates model land and a blue tint indicates model ocean.

I\'d have helped, (note past tense), but what I came to the board to do was report an ice world, hadsm3fub_jowe_006398408 this one. I have suspended it rather than aborting in case there is anything to be gained here, but I doubt it. I do not have any backups of the model. If there is anything to recover, let me know. (It crunched for 250+ hours before \"freezing\").
____________
Wave upon wave of demented avengers march cheerfully out of obscurity into the dream.

Thanks, Adrian.

Only one other model is running in that work unit (6596415). When that catches up with yours then it will be apparent whether Windows/Intel computers suffer repeatable iceworlds in that work unit, or whether the iceworld on your PC was just a random freeze.

It\'s a bit of a problem having to know that the iceworld is coming before it actually freezes! An occasional backup is the simplest method and the backup can also be used to recover from the random crashes that occur from time to time.

Your iceworld is half way through the last phase, which means it has 12 trickles still to go. Windows/Intel slow-processing iceworlds can take about a week per trickle - so that would be 12 weeks to complete that model. You could probably do five or six other slabs in that time. Abort.

Iain

Iain,

I will gladly help with your Iceworld project, as I can.

I am currently running 19 models, and have set all to record mode. Only four are AMD. As I only have 400GB dedicated to BOINC per computer I will delete the .CPDN\'s after each phase change.

It pleases me to think some use will be made of my blues\'.


Is there anyway to set the models to automatically record when they start to run?

Cheers
David
____________

That\'s great, David. My iceworld rate is about one in seven, so you should find they start to come in pretty quickly from 19 models. Remember that AMD iceworlds are sneaky: they run fast - how you\'re going to spot those I don\'t know. (I could set up a logging script here, actually, and send you a PM heads-up; that\'s how I do my own.)

I also delete the \'.cpdn\' files after each phase change (having snoozed BOINC, just in case there\'s a clash between the BOINC client writing a file and the operating system trying to delete it). I sometimes make a backup at the phase changes anyway, so it\'s a good time to do some housekeeping. (Backing up a BOINC folder with 100 GB of \'.cpdn\' files is not a good idea!)

I\'ve not found any way of starting the recording automatically. However, there are command-line options for BOINC that some users know about - not me, though. Perhaps I should explore that a bit more thoroughly.

What I have found is that:

1. Recording survives a phase change, at which point it will start overwriting any \'.cpdn\' files with the same name (the filename includes the timestep but not the phase). The \'.cpdn\' file itself contains a record of the current phase, so I can \'disambiguate\' without needing any other information.

2. Recording of models is independent, so BOINC will record as many models as the machine can take. However, I have found that my Q9550 just cannot handle four models recording at the same time: it runs for a few days, then all four models crash with the \'no finished file\' error. The models then restart without needing to be restored from backup, but the recording does not restart. That\'s why I take phase-change backups and record. Belt and braces.

3. Other ways of crashing the models and stopping the recording include \'looking at the disk tab in BOINC Manager\', \'looking at the tmp folder while BOINC is running\' and \'anything unusual happening on the PC\'.

PS I don\'t know whether the new batch of slabs turn into iceworlds. I guess we\'ll find out.

Okay, done. Current wu Ctrl-Q\'d.
____________
Wave upon wave of demented avengers march cheerfully out of obscurity into the dream.

That\'s great, David. My iceworld rate is about one in seven, so you should find they start to come in pretty quickly from 19 models. Remember that AMD iceworlds are sneaky: they run fast - how you\'re going to spot those I don\'t know. (I could set up a logging script here, actually, and send you a PM heads-up; that\'s how I do my own.) Great thanks. From tomorrow I will be at 20 models on three computers, two i7\'s and the Phenom.

I could buy another screen and put the four AMD models on it so when I am working I would see a bluey when it happens. Belt and Braces, I know.

What I have found is that:

1. Recording survives a phase change, at which point it will start overwriting any \'.cpdn\' files with the same name (the filename includes the timestep but not the phase). The \'.cpdn\' file itself contains a record of the current phase, so I can \'disambiguate\' without needing any other information. Great, so if they overwrite I don\'t need to delete, after each phase, as I should not exceed 8 * ~30GB (240GB)of data. Is that a correct understanding?

This also brings up another question. Do the .tmp files stay after the model ends?

2. Recording of models is independent, so BOINC will record as many models as the machine can take. However, I have found that my Q9550 just cannot handle four models recording at the same time: it runs for a few days, then all four models crash with the \'no finished file\' error. The models then restart without needing to be restored from backup, but the recording does not restart. That\'s why I take phase-change backups and record. Belt and braces.
This could be a concern as I run two i7\'s,each with eight cores. I guess we will know in a couple of days how many it can record at a time.lol.

3. Other ways of crashing the models and stopping the recording include \'looking at the disk tab in BOINC Manager\', \'looking at the tmp folder while BOINC is running\' and \'anything unusual happening on the PC\'. Currently running version 6.10.16 but will avoid looking at the disk tab while models are running. Thanks for this tip

PS I don\'t know whether the new batch of slabs turn into iceworlds. I guess we\'ll find out.

I could buy another screen and put the four AMD models on it so when I am working I would see a bluey when it happens. Belt and Braces, I know.

Great, so if they overwrite I don\'t need to delete, after each phase, as I should not exceed 8 * ~30GB (240GB)of data. Is that a correct understanding?

This also brings up another question. Do the .tmp files stay after the model ends?

The four AMD models are as follows:

hadsm3dhet2_ul4a_006479812_6 .96 s/TS @ 65.16% complete.
hadsm3fub_kh70_006479462_0 .99 s/TS @ 59.37% complete.
hadsm3fub_kgzi_006479192_2 .96 s/TS @ 55.53% complete.
hadsm3fub_kgxv_006479133_9 .97 s/TS @ 52.66% complete.

I also have a 4850 x 2 using .05% CPU / core to crunch GPU Milkyway WU\'s.
I have changed my setting to 1% of GPU for grapics, so should not slow things too much. Any idea how much the dip would be?
____________

The four AMD models are as follows:

hadsm3dhet2_ul4a_006479812_6 .96 s/TS @ 65.16% complete.
hadsm3fub_kh70_006479462_0 .99 s/TS @ 59.37% complete.
hadsm3fub_kgzi_006479192_2 .96 s/TS @ 55.53% complete.
hadsm3fub_kgxv_006479133_9 .97 s/TS @ 52.66% complete.

Any idea how much the dip would be?

OK, they\'re the ones now at http://www.bridge-9.org.uk/temp/dg/6697305.html etc. The list will be updated as models finish. I\'m rather busy for a couple of weeks, but eventually the script will be changed to create the pages from a host id, then no human intervention will be required. :-)

Any idea how much the dip would be?

There\'s an AMD example way back in this thread, here - second graph.

David,

The Intel models have been added to the set of graphs now. Forewarned is normally forearmed - however, with two i7 machines the chance of anyone being ahead of you in those work units is slim. Still, you\'ll know to check the machine if the seconds/timestep heads skywards.

Iain

David,

The Intel models have been added to the set of graphs now. Forewarned is normally forearmed - however, with two i7 machines the chance of anyone being ahead of you in those work units is slim. Still, you\'ll know to check the machine if the seconds/timestep heads skywards.

Iain

After failing to deliver one (2 weeks ago) which carried on to completion after restore, now have another iceworld.
This one is the genuine article (I think!) at http://climateapps2.oucs.ox.ac.uk/cpdnboinc/result.php?resultid=10317957

The .CPDN file is on its way. Note that the file size dropped from 96k (usual range 95 - 100k) to one at 69k then
immediately 7k for a number, 3k for another series, then 2k before I killed it. Is that dwindling file size normal in the aftermath of an iceball?

Enjoy. ;)

Slab: hadsm3fub_kf5n_006476821 has developed into an Iceworld at 86.170%.
WU 6694993
Recording is on.

CPDN files show
4:11PM 116KB
4:11PM 85KB
4:12PM 10KB
4:13PM 10KB
4:14PM 11KB
4:15PM 10KB
4:17PM 4KB

Iceworld detector shows: Phase 3, Step 118,822, Trickle 59, First TS 1.31, Last TS 1.30, Ratio 1.0.

Model is still running, please advise.
____________

iansm wrote:

The .CPDN file is on its way. Note that the file size dropped from 96k (usual range 95 - 100k) to one at 69k then
immediately 7k for a number, 3k for another series, then 2k before I killed it. Is that dwindling file size normal in the aftermath of an iceball?

Yes. The information in the file relates to colors. It goes from a lot of colors (variation of temperatures) for a normal model, to one color for an iceworld.

After failing to deliver one (2 weeks ago) which carried on to completion after restore, now have another iceworld.
This one is the genuine article (I think!) at http://climateapps2.oucs.ox.ac.uk/cpdnboinc/result.php?resultid=10317957

The .CPDN file is on its way. Note that the file size dropped from 96k (usual range 95 - 100k) to one at 69k then
immediately 7k for a number, 3k for another series, then 2k before I killed it. Is that dwindling file size normal in the aftermath of an iceball?

Enjoy. ;)

Yes. The information in the file relates to colors. It goes from a lot of colors (variation of temperatures) for a normal model, to one color for an iceworld.
... and the in-built file compression exploits the redundant repetition in areas of the same value (temperature, pressure, precipitation and cloud cover) - so the files get smaller.

The reason for the progressive reduction in file size is that the model initially fails at a single grid point and that failure spreads to the whole grid in two timesteps (in your case 0:95-100k, 1:69k, 2:7k). The drop to the final value, quite a number of steps later, results from sea ice becoming uniform over the whole ocean: more repetition, more redundancy, more compression. After that, nothing happens.

The model froze at 184,334 in the third phase, which follows the pattern of all other crashes, whatever phase, whatever platform - i.e. the freeze occurs in the second timestep of a block of six. The significance of that? I haven\'t a clue.

David Glogau\'s model has come across nicely and establishes a new freeze point, north-east of the Canary Islands.

This shows that there is still considerable value in submitting Windows/Intel iceworlds, even though most of them do seem to pile up in the same place. (A Mac or Linux/AMD iceworld would nonetheless be of great interest because it would be the first to be looked at in this way, and would show whether fast-processing anomalies on those platforms have the same cause as iceworlds on Windows/Intel/AMD.)

PS I don\'t know whether the new batch of slabs turn into iceworlds. I guess we\'ll find out.

Looks like I got also one.
hadsm3fub_keom_006431824_1 using hadsm3 version 607
On temperature graphic it shows a blue world and it looks like it needs much more then the 1.8 seconds for one timestep.
Temperature is -36 or -42
Precip is 0
Presure is 950

resultid=9940773

By now I\'m at Timestep 102366 of 259248 - Phase 3 of 3
____________
Matthias

By now I\'m at Timestep 102366 of 259248 - Phase 3 of 3

By now I\'m at Timestep 102366 of 259248 - Phase 3 of 3

Matthias,

Welcome to the CPDN message board.

From what you say, it does seem to be an iceworld. The rate of progress has slowed dramatically and, since the model is in the final phase, it will not recover.

If this is your first iceworld and you have a backup, then you could restore the backup to see whether the model freezes again at the same place: they usually do. Otherwise, my advice is to abort the model and download another that will then progress at normal speed.

Iain

My graphics are showing totally blue on Hadsm3mh-kw93 006490731-3
I\'m using an Intel Q6600.
Timestep is 254245 of 259248 on Phase 1
S/Ts of 2.41
____________

Iain,

I\'ve likely got another iceworld for you - hadsm3fub_kbz7_006472701 went blue somewhen before 35.5% complete so I\'ve wound it back a ways (currently at just beyond 34%) and I\'m re-running with recording switched on.

It will probably be a day or so until it hits the blue wall again (I didn\'t catch the exact point first time around) but a note of the email address to which to send the \'.cpdn\' file would faciltate a speedy upload of the appropriate file.

Cheers
Dave
____________

Iain,

Update:

Hah, caught it at timestep 11577 - I even had the graphics turned on just at the point it tripped over so was able to watch it go competely blue over a couple of timesteps.

Just to confirm it, I re-ran the last few timesteps (was able to switch of the model before it did a checkpoint) and it froze at the same t/s three times straight. Seemed to spread from the US west coast as per others mentioned above.

Sorry, this is all a bit sad but it\'s the first time in years I\'ve caught one blue-handed (so to speak)!

Ready if/when you are
Dave
____________

Thanks Dave. I\'ve been out of circulation for a week or so and may not be entirely reliable for a while. However, I\'ve now got login access to this board again and will send you a PM with my e-mail address. The \'.cpdn\' file can then be analysed and added to the collection: I\'m sure a pattern will emerge in time that will be significant to the project physicists.

(Sorry, Don, for not being able to respond more quickly: I see you\'ve aborted the model now.)

Two more iceworlds have now been processed, points #22 and 23 on the west coast map - one from Dave Peachey and one of mine, both phase 2 slabs. The map earlier in the thread has been updated.

Thanks Dave!

Iain

I have one I am recording for you but it may not become an ice world. I see someone has completed this model and two others had computer errors. 10 copies were sent out Nov 2nd and all have some progress made. I noticed it this morning when checking the graphics that a large chunk of the Pacific Ocean was Green of the Northern Coast of South America. I have started the recording but have not done a back up of this model and therefore wont have the initial freeze points on it. It may not turn into an ice world but if it does maybe one of the other crunchers who have not gone as far into this model as I have would record it for you.

Heres the Work Unit : 6692632

This one is Mine : 953461
____________
Rick

Thanks for looking at that, Rick.

The complete model in that work unit is showing a marked decline in precipitation (here) but has a complete set of temperature and precipitation data and doesn\'t slow down. So, I\'d bet that your model will finish OK, though it would appear to have an odd climate.

Tell us how it develops. Even if it finishes successfully, you could treat this model as a dry run (no pun intended) for an iceworld - see if you can find where the plaback \'.cpdn\' files are stored: there should be thousands by now. They\'re cleaned up when the model finishes.

Iain

Thanks for looking at that, Rick.

The complete model in that work unit is showing a marked decline in precipitation (here) but has a complete set of temperature and precipitation data and doesn\'t slow down. So, I\'d bet that your model will finish OK, though it would appear to have an odd climate.

Tell us how it develops. Even if it finishes successfully, you could treat this model as a dry run (no pun intended) for an iceworld - see if you can find where the plaback \'.cpdn\' files are stored: there should be thousands by now. They\'re cleaned up when the model finishes.

Iain

It looks like it has finished Iain. I wont be in to the office until after it reports. Does that mean the cpdn files wont be saved for it?

It looks like it has finished Iain. I wont be in to the office until after it reports. Does that mean the cpdn files wont be saved for it?

The trickles are already on the Web site and the temperature/precipitation graphs too. So the model looks like a conventional success - and no evidence of an iceworld from the graphs, just the same cool and dry climate reported by the other finisher in the work unit.

I\'m not sure at exactly what point the \'.cpdn\' files are tidied up, but they will certainly have been done by the time the model gets to report. It is a bit of a problem having to know that an iceworld is coming before turning the recording on: I try to download new models as far ahead of time as possible (the BOINC maximum is ten days), so that someone else can get ahead of me. Otherwise, the best method is to wait for an iceworld and then re-run it from backup with the recording switched on some time before the freeze (but I know that\'s a bit of a hassle).

Iain,

hadsm3fub_kas7_006471153_7 iceworlds somewhere after TS 129,624 of phase 3, and it repeated from a backup made around TS 40,000, phase 3. Prior to the backup I was running a modified version of the hadsm3_um executable to enable SSE/SSE2 on AMD processors (which boosts the speed by ~%80 -- thanks geophi!) I decided to go back to the original executable to test an undervolt setting which was giving me computation errors in Sept. and Oct. I didn\'t encounter any errors this time, but produced the iceworld within a day. I went back to default voltages and restored from backup and got the iceworld again after TS 129,624. I am curious to see if the modified executable will iceworld, and also wonder if the model would have iceworlded earlier under the original executable. (Is \"iceworld\" a verb?)

I was pleased to finally perform a successful restore of a single task (restoring projects/climateprediction.net/hadsm3... directory, projects/climateprediction.net/hadsm3....xml file, slots/x directory and editing three xml\'s in the top level directory), so I am at your disposal if you want me to experiment. I only have the one backup though, how do I start the task over from scratch with the originial zip file? And what\'s this \"recording\" that everyone is doing?

Ahh. Helps to read the first post. I will commence recording with the unmodified executable later today.

Eric

Thanks, Eric.

This effort is initially concerned with some pretty basic questions: in particular, \'are fast-processing iceworlds on Windows/AMD, Linux/AMD and Mac the same thing as slow-processing iceworlds on Windows/Intel?\' It\'ll be very surprising if the answer is \'no\', but since I\'ve only got one iceworld that isn\'t Windows/Intel there\'s still a bit of work to be done even on the basics.

So, a Linux/AMD model would be a big step forward, not only because it would extend coverage to a third platform but because the one Windows/AMD model that has been analysed \'froze\' in an unusual place - so your model might add to the variety of freeze points - which must be a significant diagnostic as to the cause (coastal location, restricted latitude range).

And what\'s this \"recording\" that everyone is doing?

I only have the one backup though, how do I start the task over from scratch with the originial zip file?

WU: 6690551 Iceworld at TS 202.622 (also from backup); generated .cpdn-files; have a backup immediatedly (savepoint) before that point.
____________

WU: 6690551 Iceworld at TS 202.622 (also from backup); generated .cpdn-files; have a backup immediatedly (savepoint) before that point.

Two more iceworlds to report, one from Belfry and one from peterfilla - to whom thanks are due! Both models freeze on the west coast of North America, though in different places. The map earlier in this thread has been updated accordingly.

The fast-processing iceworld from Belfry is the first Linux/AMD model to be analysed in this way. In common with iceworlds on Windows/Intel (slow) and Windows/AMD (fast) the freeze:

* appears in the second timestep of a group of six

* happens at a grid point adjacent to land in a restricted latitude band.

I take this as good evidence that models on all three platforms freeze for the same reason. Keep the models coming, on any platform, as the geographical distribution may give a clue as to the underlying cause.

Now, what we need is a Mac user!

Here is a summary of the steps needed to submit an iceworld:

[Les Bayliss wrote:]

1) Backup your current position and make sure to put it somewhere safe. With an appropriate label! You\'re going to need this to continue later!
2) Restore the pre-iceworld backup.
3) Make sure that the project is set to \'No new tasks\' in the Projects tab.
4) Make sure that BOINC is set to Network activity suspended.
5) Suspend all models except for the \'iceworld\'.
6) Press the \'Show graphics\' button in BOINC.
7) Press <Ctrl> Q to start recording. (Or run the model for a while first, to get closer to the failure point. It took me a while to do this, because I kept missing it.)
8) Close the graphics window (the recording will carry on).
9) Save the relevant .cpdn file. (I saved half a dozen before and after. To be sure; to be sure.)
10) Copy the GOOD backup back to the working location.
11) Continue from where you were. (You can Abort the \'iceworld\' model.)
12) Get the address from Iain for sending the file.
13) Send it.

Thanks to Les for that. I added a couple of steps to start/stop the graphics.

That\'s a pretty complicated method for me. My method is way simpler!

1) Model starts
2) Press the \'Show graphics\' button in BOINC.
3) Press <Ctrl> Q to start recording.
4) If Iceworld develops, send the relevant .CPDN file to Iain.

I do admit you need to reset the recording each time BOINC shuts down, which can be a nuisance, and you need a couple hundred GB\'s of spare disk storage.

Cheers
David

Here is a summary of the steps needed to submit an iceworld:

[Les Bayliss wrote:]

1) Backup your current position and make sure to put it somewhere safe. With an appropriate label! You\'re going to need this to continue later!
2) Restore the pre-iceworld backup.
3) Make sure that the project is set to \'No new tasks\' in the Projects tab.
4) Make sure that BOINC is set to Network activity suspended.
5) Suspend all models except for the \'iceworld\'.
6) Press the \'Show graphics\' button in BOINC.
7) Press <Ctrl> Q to start recording. (Or run the model for a while first, to get closer to the failure point. It took me a while to do this, because I kept missing it.)
8) Close the graphics window (the recording will carry on).
9) Save the relevant .cpdn file. (I saved half a dozen before and after. To be sure; to be sure.)
10) Copy the GOOD backup back to the working location.
11) Continue from where you were. (You can Abort the \'iceworld\' model.)
12) Get the address from Iain for sending the file.
13) Send it.

Thanks to Les for that. I added a couple of steps to start/stop the graphics.

Hello all
I\'m a newbee to the board and have an iceworld, I can\'t say exactly when it occurred but I noticed it several days ago when the \"to completion\" time kept getting longer, not shorter. I\'ve got a Q6600 XP pro machine and have 172 hours of CPU time into it, it\'s @ 35.284% completion.
Is this a lost cause?

Hello all
I\'m a newbee to the board and have an iceworld, I can\'t say exactly when it occurred but I noticed it several days ago when the \"to completion\" time kept getting longer, not shorter. I\'ve got a Q6600 XP pro machine and have 172 hours of CPU time into it, it\'s @ 35.284% completion.
Is this a lost cause?

[karfixer wrote:]It looks to be frozen(No Pun intended). I\'m pulling the plug.

I reckon I have one. It\'s Windows and Intel. It\'s task hadsm3mh_kv3y_006489250_1 using hadsm3mh version 602 . Sadly, I take my backups about every 5 days and today was going to be the next backup, so I\'ve got 5 days of processing to get back to Ice World Point but I\'ve started processing from the last backup to collect the data for your Appeal.

By the way, is there any point transferring it to an AMD machine to see if it passes the Ice World Point? Is this something that\'s been looked into?

By the way, is there any point transferring it to an AMD machine to see if it passes the Ice World Point? Is this something that\'s been looked into?

This has been discussed extensively on the other discussion board, and, yes, it does work.
But part of the point of these models is to see what happens to them, given a specified set of starting values. If they fail to complete, then the researchers want to know this, and forcing a model to complete by any means possible defeats this part of the work.

Restoring from backups should really only be used to see if the failure was because of a momentary hardware problem. Otherwise, let it fail, and then report this to the server.

[Lockleys wrote:]Thanks, Les. I\'ll do as you suggest.

That WU looks like a Windows/Intel iceworld - three people are stuck at that point - so if you\'re happy to re-run the five days then I\'ll be very interested to get the \'.cpdn\' file. You will lose 5 days x 4 CPUs processing but will have nailed another iceworld.

In your situation I would:

1. Abort the iceworld and report it (i.e. press project \'Update\').

2. Backup the installation (call this the \'good\' backup).

3. Restore the 5-day backup and turn the network activity off (this will stop the models being marked on the Web site as \'client detached\' - the message is benign but annoying).

4. Run the 5-day backup with only the model that will become an iceworld.

5. Start recording a day or so before you expect the freeze.

6. Send the \'cpdn\' file at the freeze point.

7. Restore the \'good\' backup and carry on as before.

Thanks.

David Glogau has added another model to the mix. It freezes at a new point - near the Straits of Gibraltar (top-right) on the Atlantic side.

So here\'s an update of the relevant map.

PS This thread is getting a bit graphics-heavy - I should perhaps start a new one at some point.

Two more iceworlds have been received and plotted on the earlier West coast map - one from Lockleys (Windows/Intel - HADSM3MH) and one from Belfry (Linux/AMD - HADSM3) - points #25 and #26. Clearly whatever causes this phenomenon is agnostic as to platform and HADSM3 type.

Thanks, both.

Iain,

I\'ve another iceworld (hadsm3mh_kunl_006488661) for which I\'ve managed to capture the key files at the second attempt. As with a number of other models, it seems to go blue at a point just off the western US coast.

I\'ve subsequently aborted the model but have a backup from an hour or so before the blueness so could re-run it if required. I\'ve also emailed a zip file to your previously advised email address.

Cheers
Dave
____________

Dave,

Thanks for that: as you say, it\'s a west coast freeze - now point #28 on the earlier map (point #27 was one of mine). Also, another Med. freeze - the first eastern repeat, now point #2 at the western end (also mine).

This brings the total to forty hadsm3/hadsm3mh looked at in this way. It\'ll make sense in the end: keep \'em coming.

Happy New Year!

Iain

Work Unit ID 6685534 was aborted after I belatedly discovered it had frozen in progress at 95.8% while cpu time continued to increase. Time step was likewise halted at 216040, and I noticed a couple of my wingmen had their trickles last reported at the same point. The last trickle was at about 260 hours of processing, and cpu time had advanced to 378 hours when I aborted the task; so roughly 118 hours of single cpu time was lost. Perhaps if possible it would be worthwhile to notify the other affected crunchers that they are \"spinning their cpu wheels on slick ice without any progress.\"

Apparently this is an Iceworld occurence and I cannot handle the program you have outlined to rectify and report accordingly.

I hope this is of some assistance and saves others lost processing time.

I am glad to support this great project.

I have a model that appear to have entered the iceworld state after completing about 75% of process - hadsm3fub_kfhn_066432869_4. The time to complete processing continues to increase now.

I have a model that appear to have entered the iceworld state after completing about 75% of process - hadsm3fub_kfhn_066432869_4. The time to complete processing continues to increase now.

Five more iceworlds to add to the western image: four slabs and one mid-holocene. Thanks to peterfilla and iansm - and three of mine in a row. :-(

Here\'s the distribution again:


The Windows/Intel models seem mostly to be west coast freezes, though David Glogau\'s i7 is generating a few Med. freezes. Anyone got a Mac fast-processing iceworld?

Work Unit ID 6702955 has entered Iceworld at the 96.744% completion point and has been ABORTED. This is an hadsm3mh_kro0_666484788_1 task. There are others running this task that may wish to take action accordingly.

A new African freeze point from iansm: MH, phase 4. It\'s the most southerly point so far, east or west. Same coastal pattern, even though that grid box looks about half land and half sea in the real world.

Thanks to james for a phase-3 slab model iceworld. It\'s another western freeze: point #9 in the middle.

Hi Iain,

I ran with geophi\'s special sauce (the SSE patch) from mid December through January, then switched back to the clunky, x87 endowed original in early February. I\'ve been checking my graphics regularly, so I\'m kinda surprised it took five weeks to get an iceworld again, given I had two within 10 days last year.

This one iceworlded at 8.3%, and I didn\'t have a backup so I restarted it from zero, and I was kinda surprised to see it iceworld again. Cpdn files are emailed to you. Geophi\'s patch again runs normally through the iceworld point. I will probably run this one from zero on my Dad\'s Athlon 64 machine, just for theories.

The following is for starting a task which you are still running over from zero. If the task has already finished this will not work and you\'ll lose your computer ID (and have to merge with your old one--a harrowing feat I have yet to master.) It\'s a bit arduous, so give yourself about twenty minutes. This procedure is based on my Ubuntu 9.04, x86_64 system running BOINC 6.4.5 installed as a service. I\'m fairly certain the procedure will work on Windows and Mac as well, but you\'ll have to infer the directory locations and the commands. Also be sure you maintain the original ownership, permissions and attributes of all altered files.

part I:

1) Write down or remember the name of the iceworlded task, i.e. hadsm3fub_jj10_006435182

2) Close boinc manager and stop the boinc service.

If it\'s easier than making a backup I might switch to it myself!

Ugh. I got two \"2\'s\" in part II. Maybe an admin can fix?

addendum to part II.

Windows notepad\'s formatting will give you headaches--literally. Use Win32pad instead

Let me distill my instructions into three sentences:

Delete every trace of the task within the slots and projects/climateprediction.net directories, except for the original zip file.

Set the clock back (after \"<cpu_time_remaining>\") in sched_request_climateprediction.net.xml.

Remove the <active_task> sub-sections in client_state_prev.xml and client_state.xml.

Have aborted a iceworld.
running on a Intel(R) Pentium(R) 4 CPU 3.20GHz [Family 15 Model 4 Stepping 1]
hadsm3fub_jrqw_006446482 resultid=10110946

last show graphics at the day before yesterday shows a normal world temperature.
Today it has changed to a iceworld.
____________
Matthias

This task, hadsm3dhet2_k2m8_006613042_8, turned into an iceworld on a Q6600 running Win7_x64, so I aborted it. Sorry, no backup so I can\'t do any recording. It did actually finish, though, on two other machines, one running Linux and the other a Mac.
____________

Is this blue world of any interest?

Name: hadsm3fub_k6pr_006465881
Elapsed: 1774:33:29
Fraction: 89.630%

WindowsXP, Pentium 4

The slab is dead! Long live the slab!

Keep 'em coming.

The server maintains a queue of 100 available models. There were probably no slabs in this queue. Milo has, I think, run the transitioner and the problem of no available slabs should now be fixed.

Hello!

May be my work computer have a one of "Slowdown model" - task 11000318 for workunit 6797232. Value in column sec / TS increased with growing number of computed steps. I only now read info about "icewords" and do not precise remember temperature in this model, but colors in "Temperature mode" is orange, yellow and near to north - green and blue.

Number of step continuously increased (in Friday it was ~ 187300 - 188000). Other results for this unit have a usual sequences of sec / TS ratio. Model now computing on Intel Core 2 E8500 @ 3.16 GHz and DDR3 memory. Without any overclocking. May be one of part of this model computed on Intel Core 2 e4300.

It's a "fail unit"? Or not? Whether there a "scientific sense" throughout calculations? (Computaion time and credits is not a problem for me. Science is more important).

Thank you!
____________

Check the model. Solid blue color and low tempereature. (Different colors may be from other computer))).

Computing must go on. :)
____________

Did anyone ever figure out what the cause of this was?

I just read an interesting educational article on a weather scenario called the "Marine Layer". At first glance, this appears to be what's actually happening!
